Tutorial: Setting up a radiographic scene with aRTist

Step 2: Load a part and select it

Step 2

We will use an example part in this step.

  1. Click on the "open library" icon Open library in the main toolbar

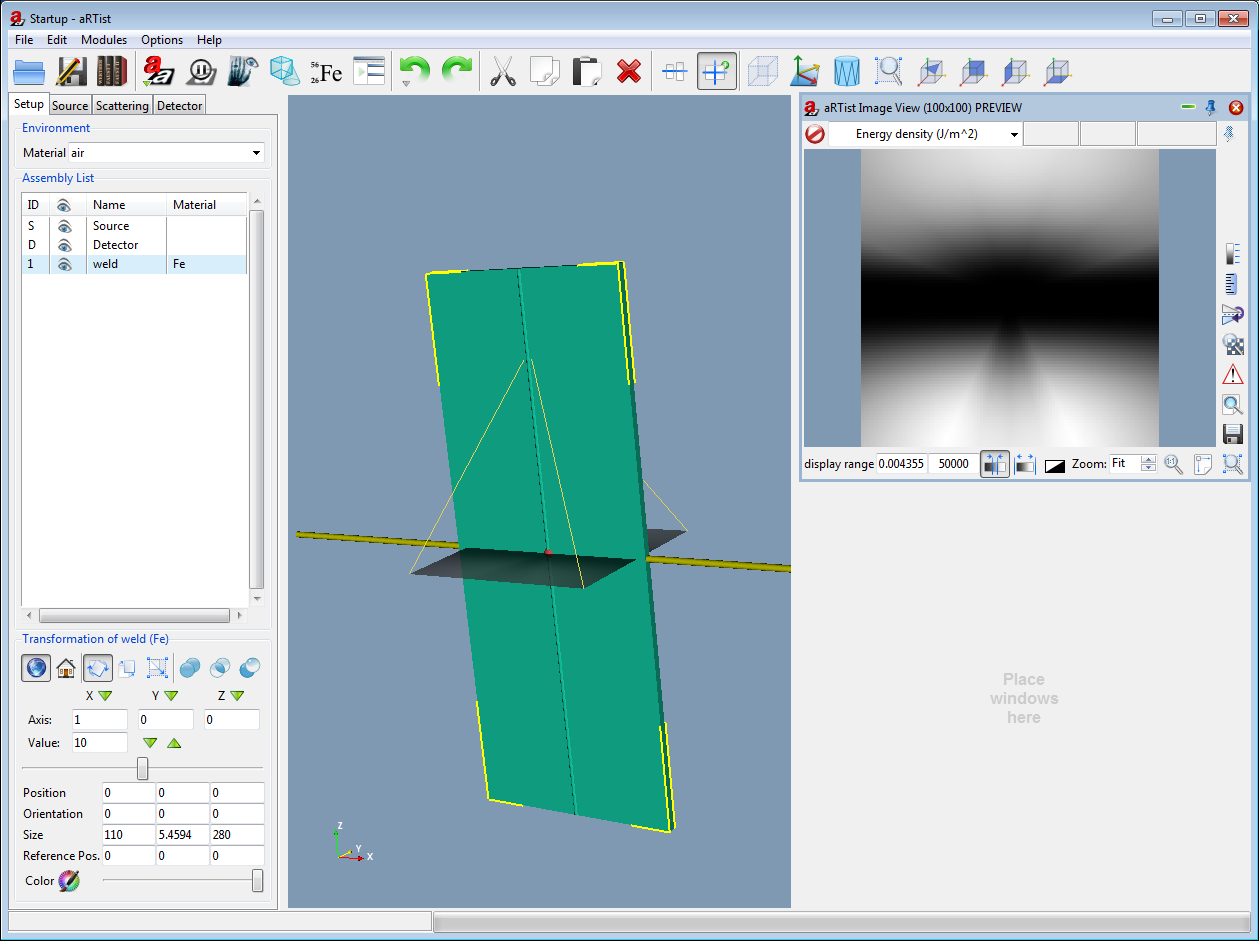

  2. Select ExampleParts/Tutorial/weld.stl
  3. A weld appears in the scene, and a new entry appears in the part list
  4. Click on the "zoom to selection" icon Zoom to selection to see the complete setup. You can also drag the right mouse button over the scene to adjust the view.
  5. Select the weld. This can be done either by clicking on the weld in the scene view, or by selecting it in the part list
  6. Light corners indicate the selection, and an arrow shows the manipulation axis

Now we will rotate and move the part using the mouse
